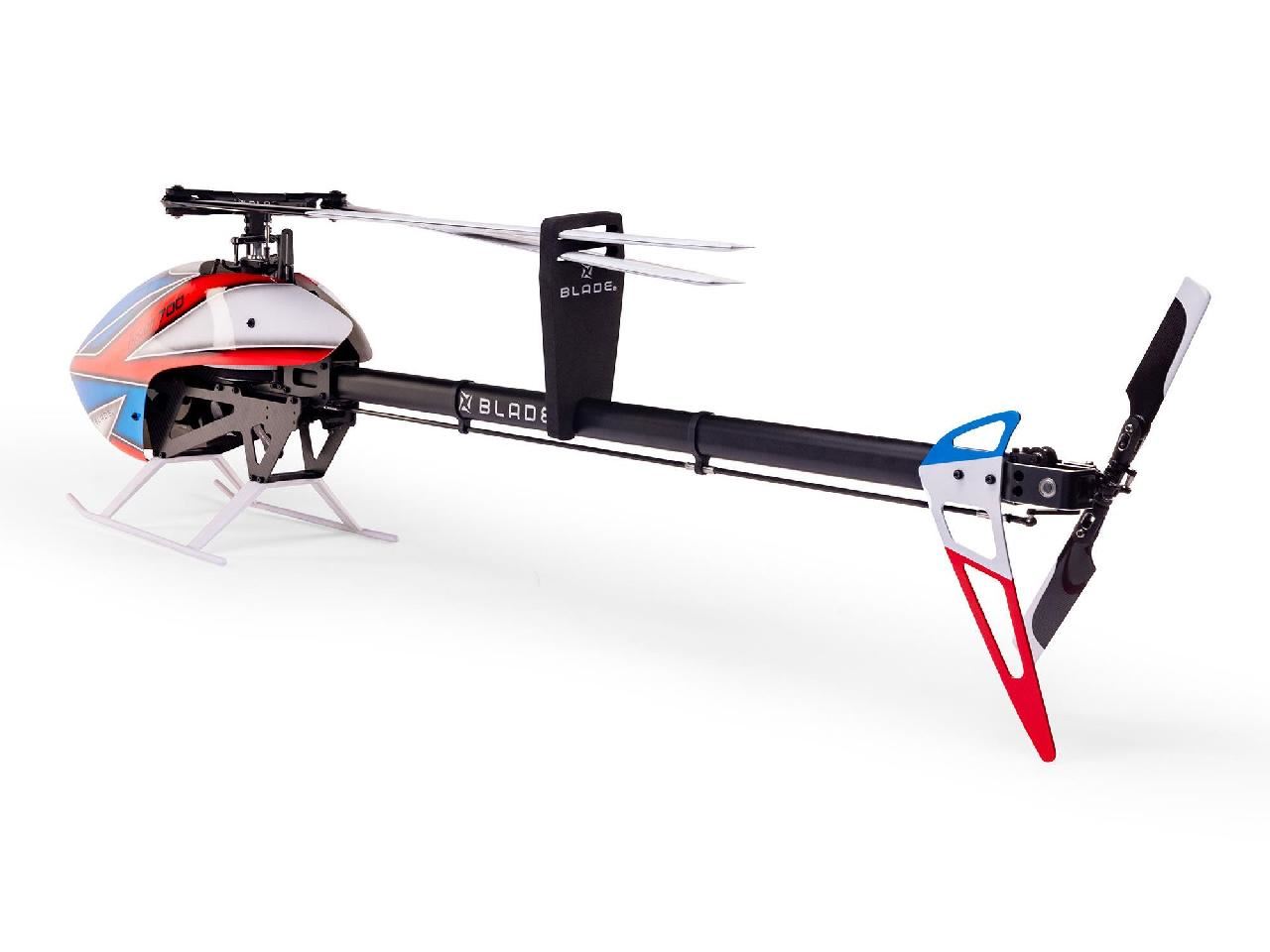

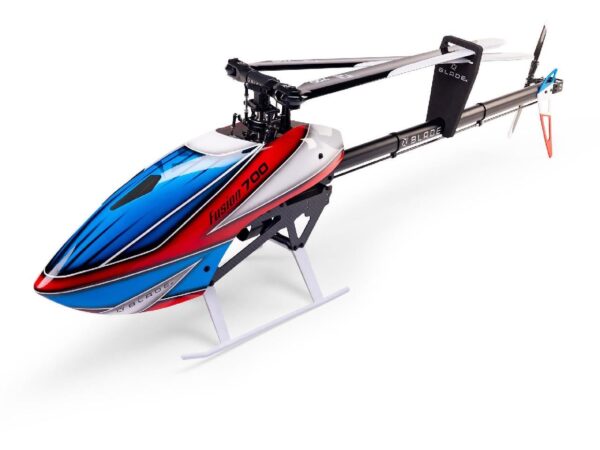

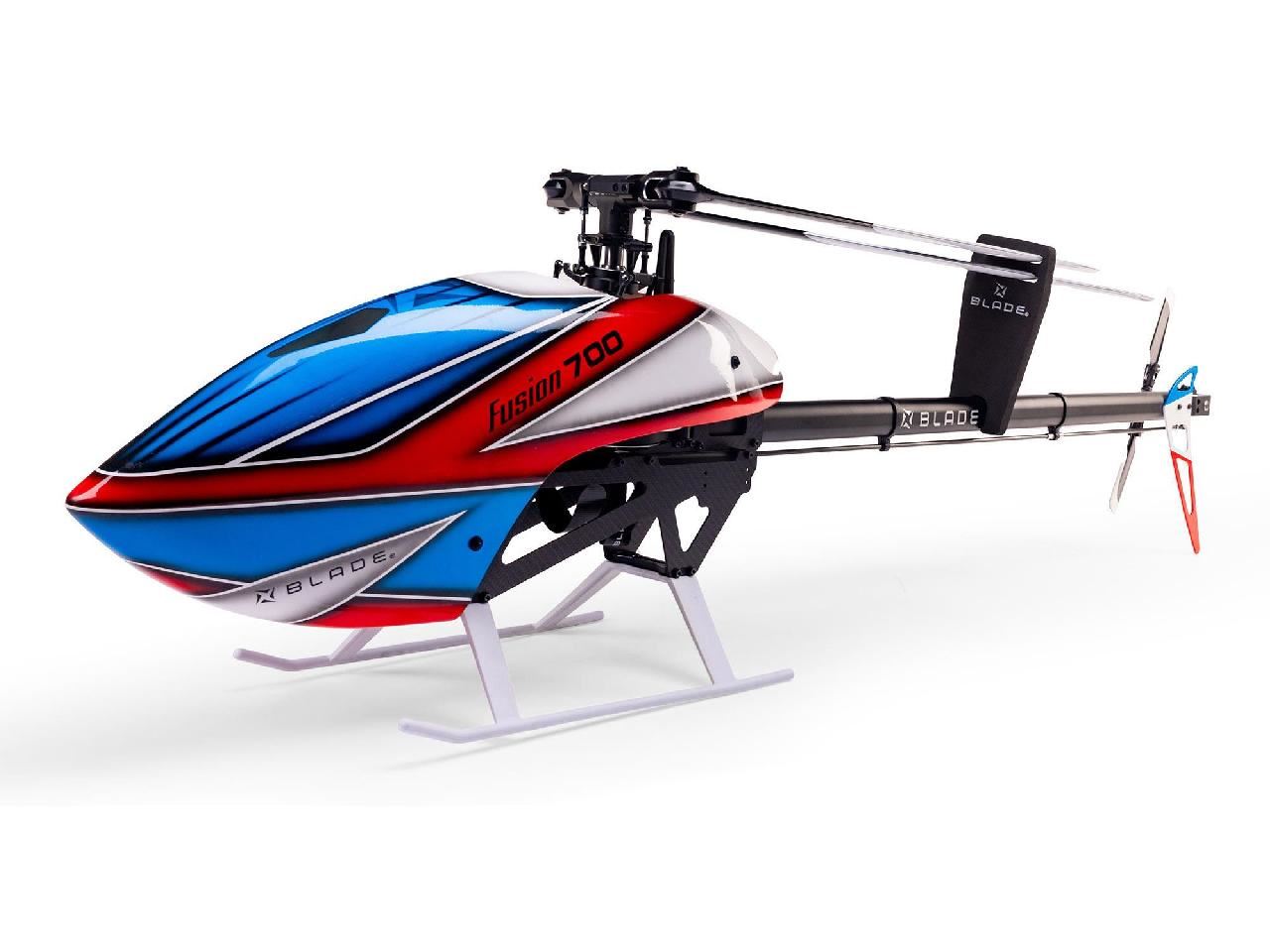

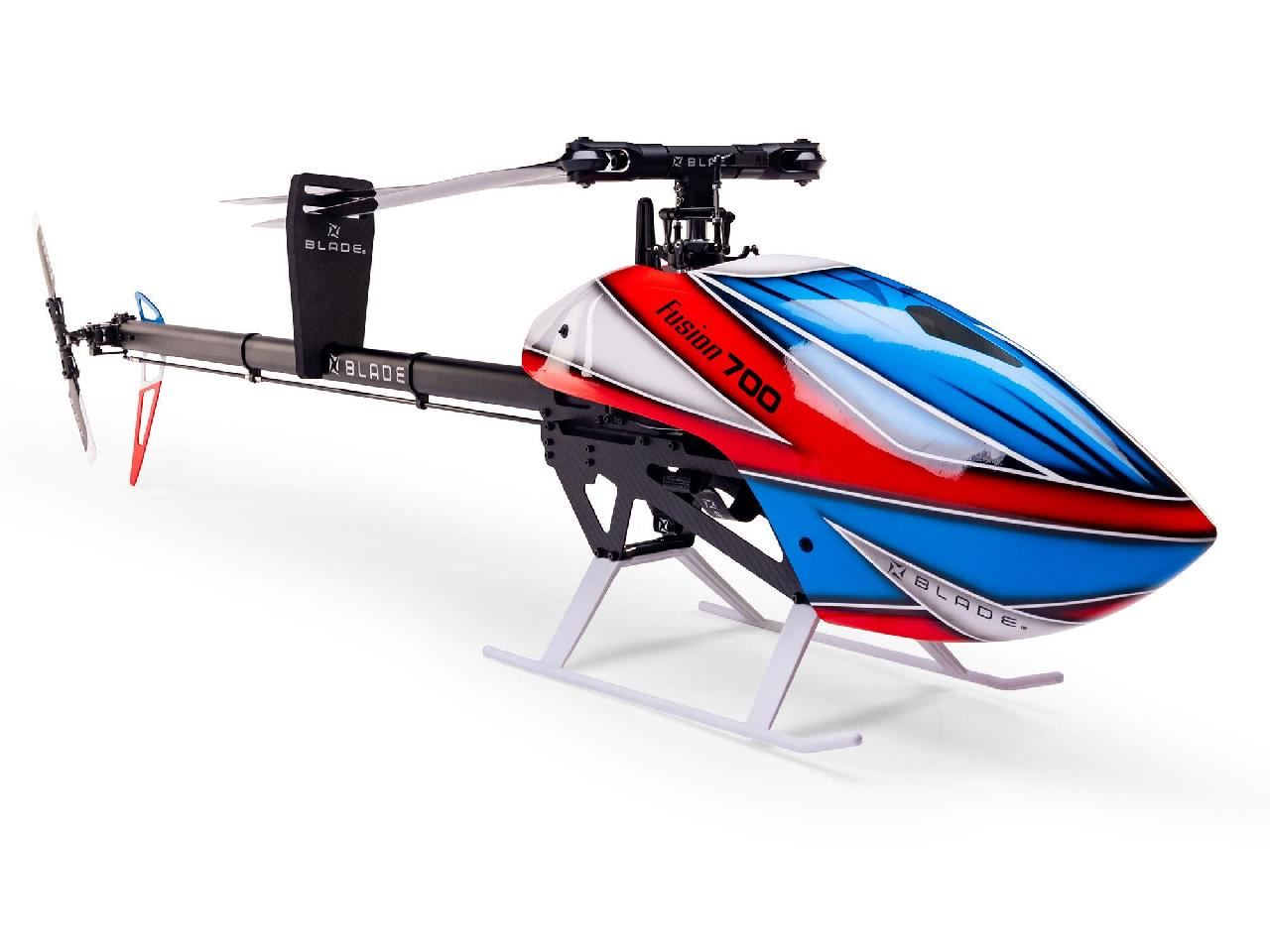

Blade Fusion 700 Kit With Motor And Blades
Product Details
The Fusion 700 delivers the pinnacle of Blade helicopter performance along with a perfect fusion of convenience and value with the included blades and motor.
Key Features
- Also available in money-saving “Super Combos” including top-of-the-line Spektrum servos, a flight controller, receiver, plus a Smart ESC
- An all-new design to offer the perfect fusion of convenience, performance, and value
- Includes carbon fibre 700mm main rotor and 105mm tail rotor blades
- Includes a 4735-540Kv brushless outrunner motor that delivers incredible torque and power
- Optional lower Kv motor, different tooth count tail pulleys and longer tail blades for low head speed 3D (LH3D) and other styles of flying
- (1) Blade Fusion 700 Helicopter Kit
- (1) Spektrum Avian 4735-540Kv 10-Pole Brushless Outrunner Motor (included)
- (1) Blade 700mm Carbon Fiber Main Rotor Blade Set (included)
- (1) Blade 105mm Carbon Fiber Tail Rotor Blade Set (included)
- (1) Foam Blade Holder (included)
- (1) Blade Fusion 700 Kit Manual
- (1) Full-range 6+ channel Transmitter
- (1) Flybarless Control System with Built-In and/or External Receiver
- (1) 120A+ 12S Brushless Helicopter Compatible ESC
- (3) High-Torque Standard Sized Cyclic Servos
- (1) High-Speed Standard Sized Tail Servo
- (2) 6S 22.2V or (1) 12S 44.4V 4000-5000mAh LiPo battery with EC5 or IC5 Connector
- (1) Compatible Lipo Charge
TAKE IT TO THE TOP
Like the Fusion series models that came before it and are still available with spare parts support since 2018, the top-of-the-line Blade® Fusion 700 blends the lines between convenience and capabilities, plus quality and value. The extremely strong carbon fibre and aluminium airframe is ready to pair with the included blades and motor, and popular 12S battery setups, to deliver exhilarating performance with power to spare. Now you can make the dream of owning a 700-sized helicopter with cutting-edge capabilities – along with incredible durability and reliability – a reality!
THE PINNACLE OF PERFORMANCE
Designed with nearly two decades of engineering and development experience, the Fusion 700 offers the pinnacle of Blade helicopter performance. It packs modern-day high-performance features into a high-quality, rugged, and reliable airframe that’s ready to deliver pro-level flight performance for sport, precision, and aggressive 3D flying. The extremely durable carbon fibre and aluminium airframe design assembles quickly, plus it’s easy to maintain and repair. The Delrin® helical main gear is driven by the included 4735-540Kv brushless outrunner motor that delivers incredible torque and performance with popular 12S or two pieces of 6S 4000-5000mAh LiPo battery setups. A belt-driven tail assembly featuring machined aluminium construction ensures locked-in tail performance on every flight. So whether you’re an intermediate pilot moving up to your first-ever 700-sized model, or you’re already a world-class 3D pilot, the Fusion 700 delivers an unmatched combination of convenience, capabilities, quality, and value!
The Fusion 700 is available as a kit that includes the motor plus carbon fibre 700mm main rotor and 105mm tail rotor blades that you can complete with the ESC, servos, flight controller, and receiver you choose. It’s also available in two money-saving Super Combos that include top-of-the-line Spektrum components including H6350 and H6360 brushless servos, an updated and upgraded FC6350HX flybarless control system, a DSMX compatible receiver, and your choice of a 120-amp or 200-amp high voltage Smart ESC. Both combos are compatible with 12S 4000-5000mAh battery setups, and the 120A ESC version is a great choice for almost everyone including those who will be performing 3D aerobatics. And the 200A ESC version offers plenty of headroom for world-class pilots who perform the most aggressive 3D maneuvers possible!
An optional 4730-350Kv motor, along with different tooth count tail drive pulleys and longer 115mm tail rotor blades, are available separately for those who prefer scale, sport, and low head speed 3D (LH3D) style flying with longer flight times. There’s also an optional orange-painted canopy plus carbon fibre tail fin and black landing gear available for those who prefer a different look.
In addition to offering combos and optional parts that allow you to equip and customize the Fusion 700 the way you like, we also know how important spare parts support and long-term availability are. The full line of spare parts for the Fusion 700 are competitively priced and, along with the helicopter itself, will be available for many years to come – just like the Fusion 360, 480, and 550 helicopters and parts have been since as far back as 2018.
Blade Fusion 700 RC Helicopter Kit Features
- Extremely strong and durable carbon fibre and aluminium airframe design
- High-strength steel 15mm main shaft and 10mm spindle with metal head components
- Ovalized aluminium tail boom eliminates the need for boom supports
- 8mm wide belt for the driven tail featuring adjustable tension
- High-strength steel 6mm tail shaft paired with a metal bell crank and grips
- Efficient Delrin® helical main gear paired with a steel pinion for quiet and reliable performance
- Compatible with popular and common 12S 4000–5000mAh LiPo battery setups
- Aluminium tail case with a metal tail drive pulley
- 5mm diameter carbon fibre tail pushrod for precise tail control
- Orange-painted canopy, carbon fibre tail fin and black landing gear available separately to customize and personalize the look
Skill Level 4 – Advanced Experience Required
Skill Level 4 aircraft, like this one, are suitable for RC pilots who already have experience with and the skills to assemble, set up, and fly similar class models. And although this is a perfect first-ever 700-sized model for intermediate pilots, you should have the experience and skills necessary to successfully assemble, set up, and fly other helicopter models like the Blade Fusion 480 and 550 before attempting to fly the Fusion 700.
Mechanics Features
- Includes a 4735-540Kv outrunner motor compatible with popular 12S battery setups
- Precision machined Delrin⌐ helical main gear with 11- and 12-tooth pinion gears
- Black anodized aluminium swashplate and other components
- Includes 700mm carbon fibre main rotor blades
- Sprag autorotation clutch and machined rotor head dampers with o-rings
- High-strength steel 15mm main shaft and 10mm spindle/feathering shaft
- Aluminium blade grips with zero pitch indicator marks
Frame Features
- All-metal and 2mm thick carbon fibre construction
- 2-piece white moulded landing gear plus a painted fibreglass canopy for excellent visibility
- Reinforced machined aluminium main shaft bearing block assembly
- Sliding carbon fibre battery tray with positive locking mechanism
Tail Features
- Ovalized aluminium tail boom for added strength and rigidity without boom supports
- Machined aluminium tail case and separate painted vertical fin for improved visibility
- 8mm wide drive belt with adjustable tension drives a large aluminium pulley
- Includes 105mm carbon fibre tail rotor blades
- Belt-driven tail rotor for lower weight, less parts, and easier maintenance
- 6mm high-strength steel tail shaft with metal bell crank, hub, and grips
- 5mm carbon fibre tail pushrod with ball links for precise control
- Hidden tail servo for added protection and a sleek look
| Spec | Data |
|---|---|
| Battery type | (2) 6S 22.2V or (1) 12S 44.4V 4000-5000mAh LiPo battery (Sold Sepratley) |
| Motor type | Spektrum Avian 4735-540Kv 10-Pole Brushless Outrunner Motor |
| Weight |
5670g
|
| Height |
378mm
|
| Length |
1384mm
|
| Width |
216mm
|
