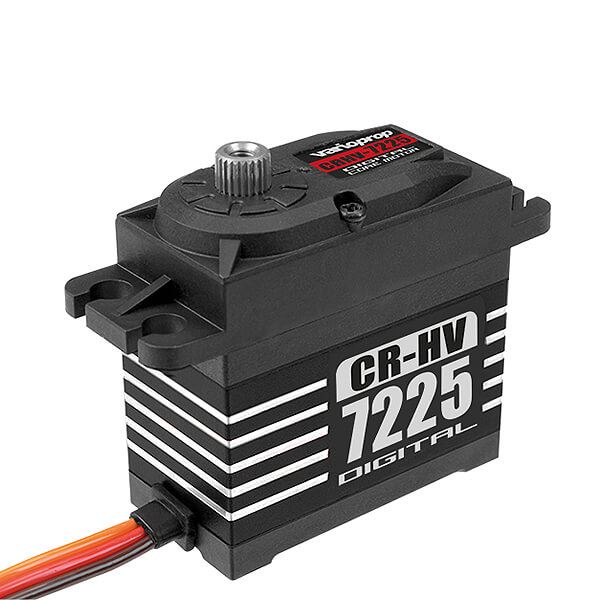

CORALLY VARIOPROP DIGITAL SERVO CR7225MG HIGH VOLTAGE CORE
CORALLY VARIOPROP DIGITAL SERVO CR7225MG HIGH VOLTAGE CORE
Specifications
Servo Technology: Digital Ultra High Voltage
Input Voltage (V): 6.0V – 8.4V
Weight (g): 63 g
Servo Type / Size: Standard
Length (mm): 40.5 mm
Gear Material: Metal Gears
Width (mm): 20.5 mm
Ball Beared: Ball Beared
Motor Type: DC Motor
Height (mm): 28.5 mm
Servo Case: Aluminium – Composite
Servo Power – Torque Kg/cm: 16 – 25 Kg/cm
Servo Speed 60/sec: 0,14 sec / 60
Speed 60/Sec @ 6.0V: 0,14 sec / 60
Speed 60/Sec @ 7.4V: 0,13 sec / 60
Torque kg/cm @ 7.4V: 25.0 Kg/cm
Connector type: JR
Spline size: 25T Spline
Water Protection: water-resistant
