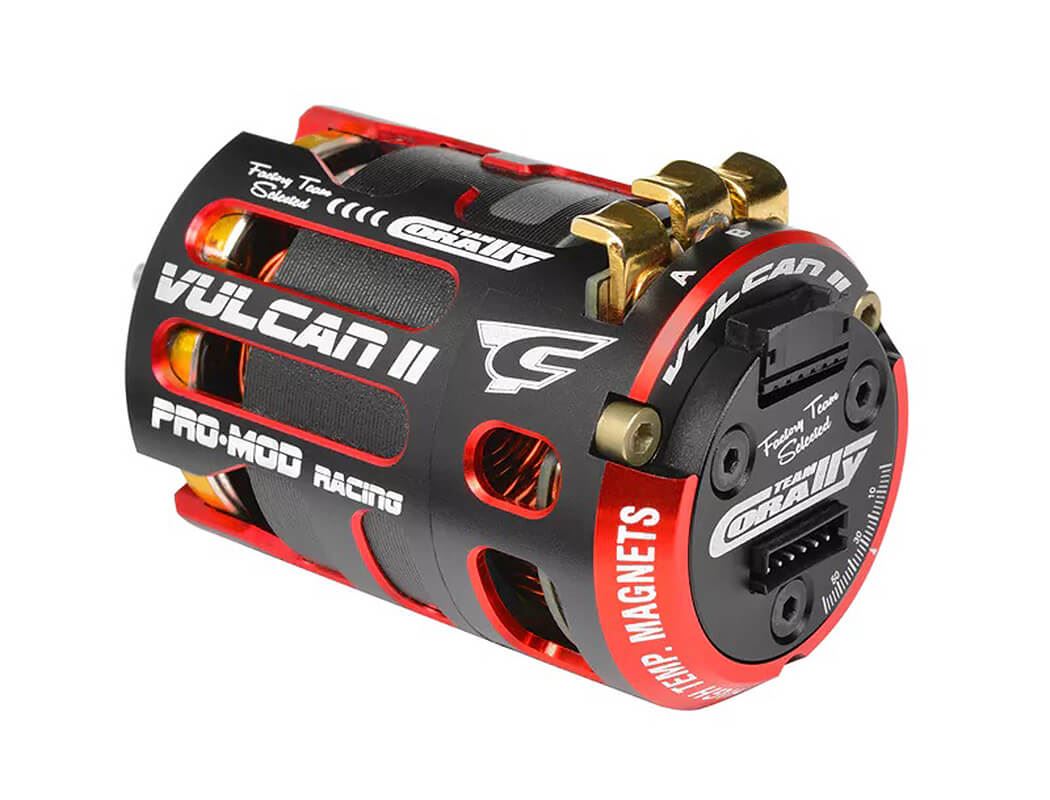

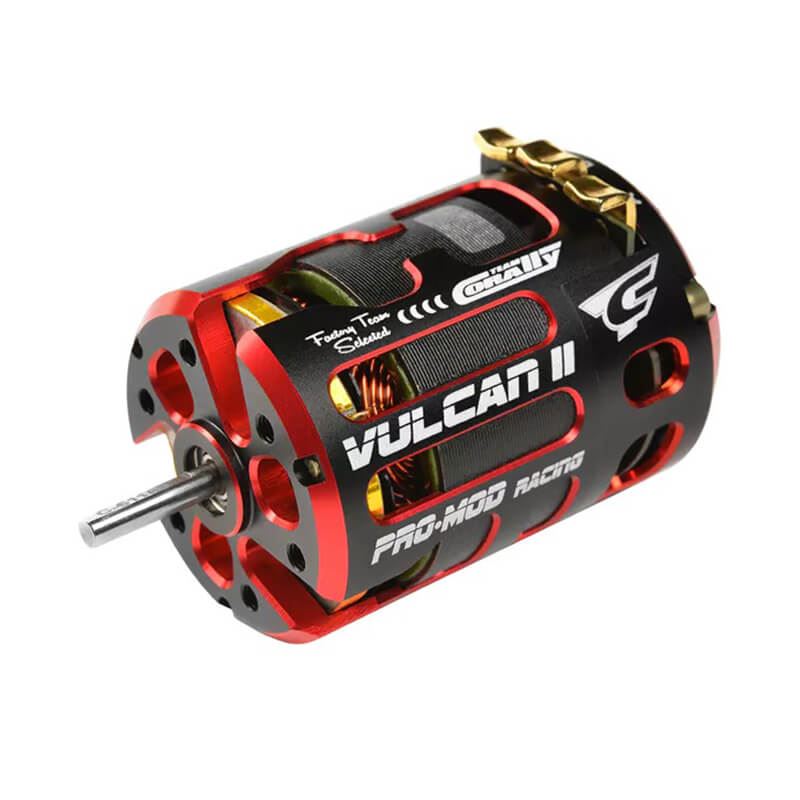

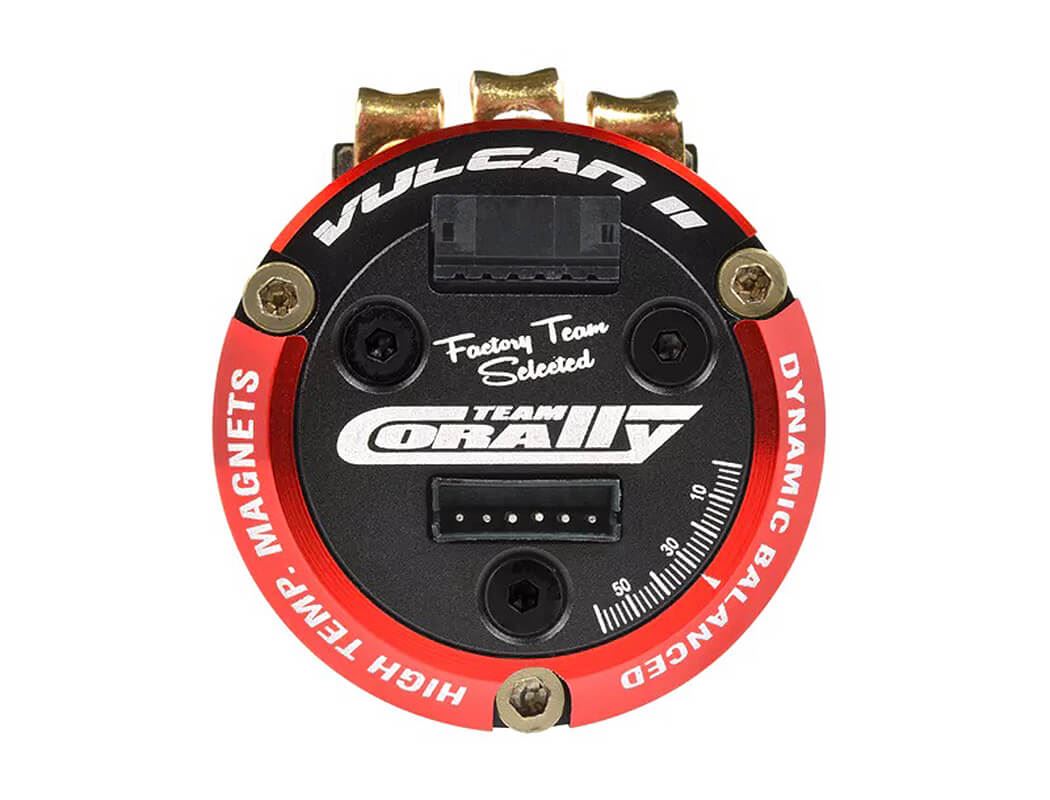

CORALLY VULCAN II PRO MODIFIED SENS COMP BRUSHLESS MOTOR 6.5T
CORALLY VULCAN II PRO MODIFIED SENS COMP BRUSHLESS MOTOR 6.5T
Specifications
Motor – Application: 1/10 Buggy 2WD, 1/10 Buggy 4WD, 1/12 Pan Car, 1/10 Pan Car, 1/10 Touring
Motor – Class: Modified Motor
Motor – Compliant: ROAR / BRCA / EFRA / IFMAR
Motor – Input Voltage Range (V): 1S – 2S Li-Po
Motor – IO (A): 4,5
Motor – KV (Rpm/V): 5600
Motor – Max. Amps: 98
Motor – Poles: 2-Pole Rotor
Motor – Resistance (Ohm): 0,01
Motor – Rotor Size: OD 12.3mm x ID 5.0mm x L 24.5mm – C-16180
Motor – Size ID: 540 Type
Motor – Stator: 3-Slot Stator – 0.2 Steel Laminations
Motor – Timing: Adjustable Timing
Motor – Turns (T): 6,5
Motor – Type: Brushless – Sensored
Motor – Watts: 395
Motor – Diameter. ø (mm): 35,8
Motor – Length (mm): 52
Motor – Mounting Holes: M3 @ 25.4 mm
Motor – Shaft Dia. ø (mm): 3.17 mm
Motor – Shaft Length (mm): 13
