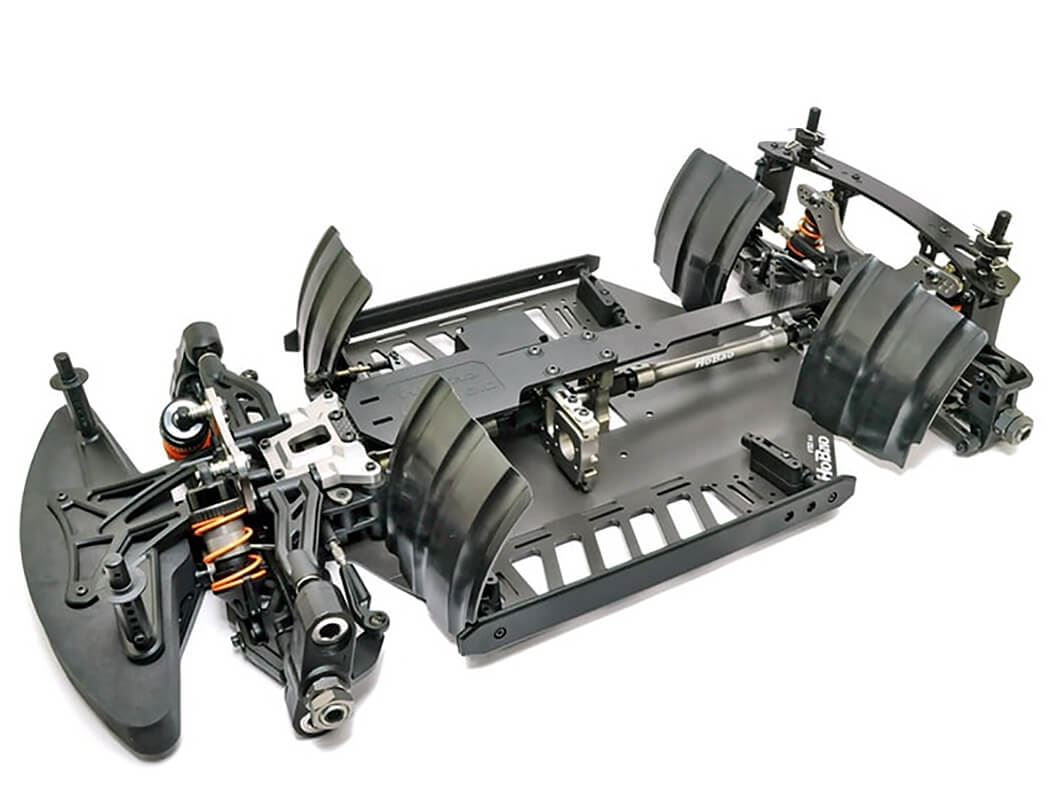

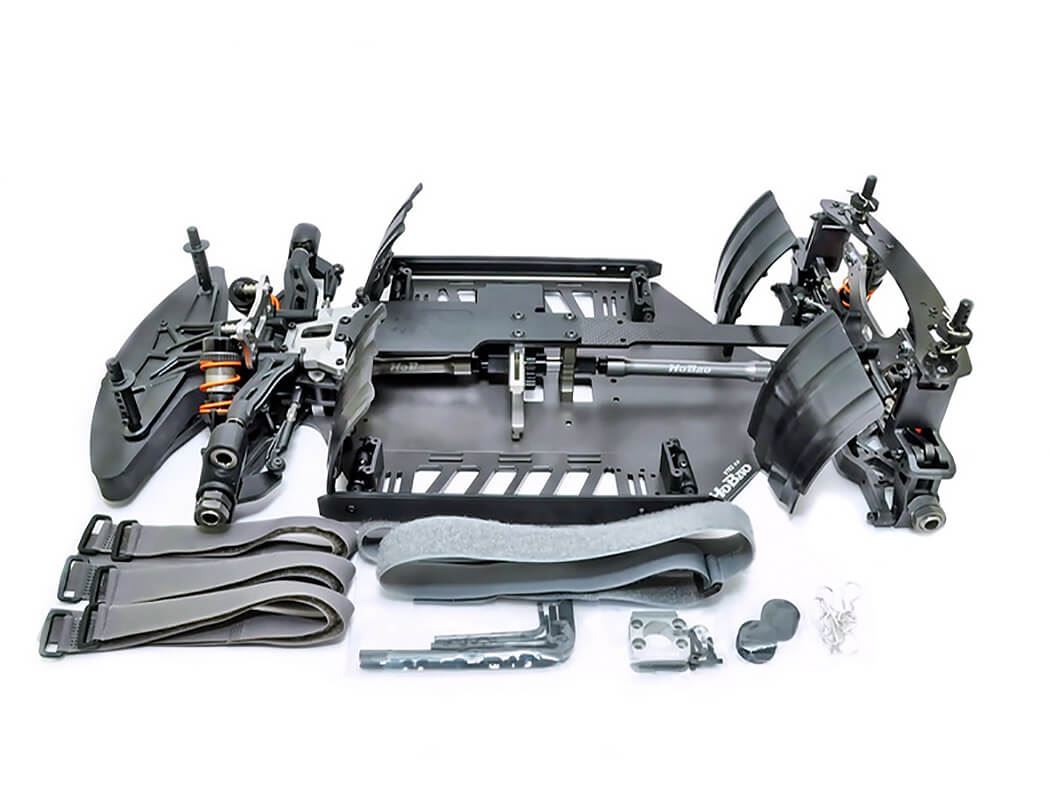

HOBAO EXTREME VTE2 V2 1/7 ON ROAD EP ROLLER 80% PRE-ASSEMBLED

HOBAO EXTREME VTE2 V2 1/7 ON ROAD EP ROLLER 80% PRE-ASSEMBLED

HOBAO EXTREME VTE2 V2 1/7 ON ROAD EP ROLLER 80% PRE-ASSEMBLED

FEATURES

• New Lightweight Rear Floating Body Mount Set
  – Fitting for GTLE, GTSE, VTE and VTE2 series
• New Front and Rear Splash Guards
• New Adjustable Side Body Supports
• 3-Position Adjustable Battery Stopper on Chassis for Different Sizes of Batteries
• New ESC Top Tray (The tray can be placed either on front or rear as per your preference)

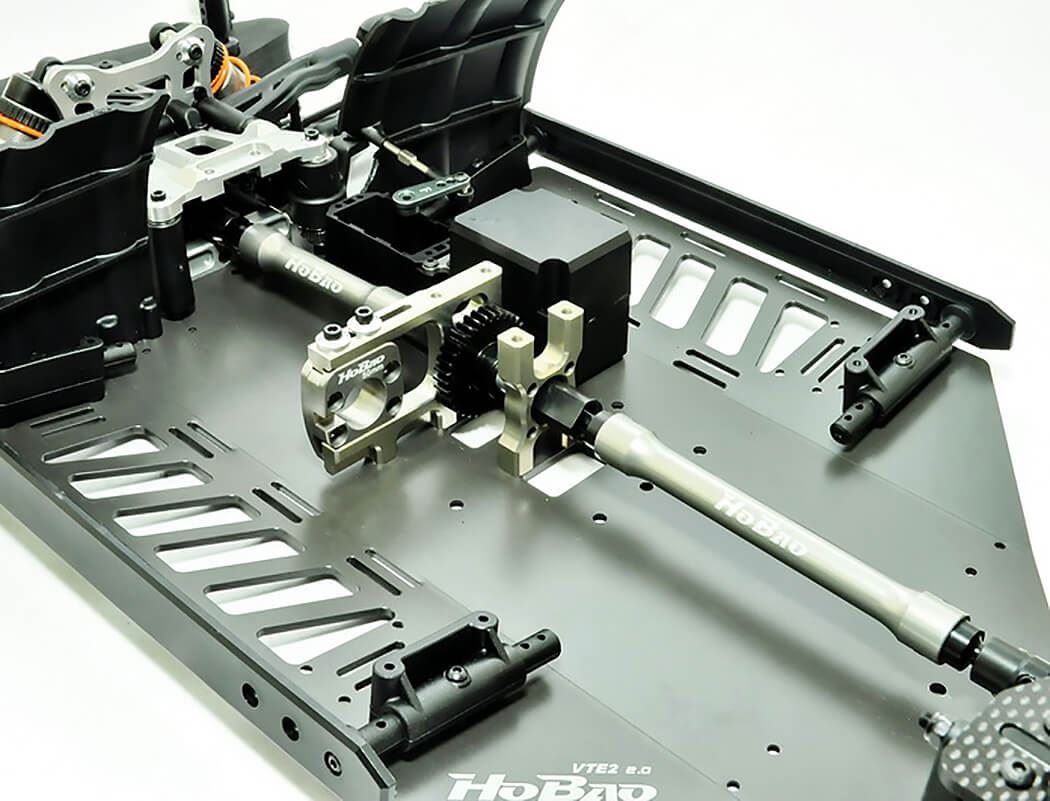

• New Chassis: 3mm thick hard anodized aluminum
  – Optional part #OP-0171 carbon fiber chassis
• New Rear Wheel Hub (Length +2mm) with Anti-Loose Wheel Nut
• New Rear Suspension Mount +4mm
• Drive: 4WD Drivetrain
  – Hardened Steel Front Universal Joint Driveshaft and Rear Dogbone
  – Optional 5.3mm Universal Driveshaft #OP-0159 & 5.0mm Rear Dogbone HOP-0161
  – New Lightweight “Steel + Aluminum” Front & Rear Center Driveshaft
• Front & Rear Differential: Bevel Gear Type, New Anti-Leakage Differential Housing, Hardened Steel Lightweight Cup
  – Front differential filled with #500K silicone oil
  – Rear differential filled with #50K silicone oil
  – Optional 40T Ring Gear #OP-0146 and 15T Pinion Gear #OP-0147
  – Optional Bevel Gear #OP-0139
  – Optional Differential Housing : OP-0148
• Center Spool: 34T Spur Gear (MOD 1), 8mm Shaft, Hardened Steel Cup
  – fit for 8mm bore pinion gear
  – Max. 48T Spur Gear can used
• Aluminum Spool Mount #OP-0153
• Motor Mount: CNC Aluminum, Cam Lock Style
  – Standard Part #OP-0149 for max. O.D 50mm motor
  – Optional Part #OP-0150 for max. O.D 57mm motor
• Shocks: Oil-filled 17mm Big Bore Shock with #600 silicone oil, 4mm Diameter Shaft
• Shock Tower: 4mm thick CNC Aluminum
  – New Rear Shock Tower
• Ball Bearing: Full Set included

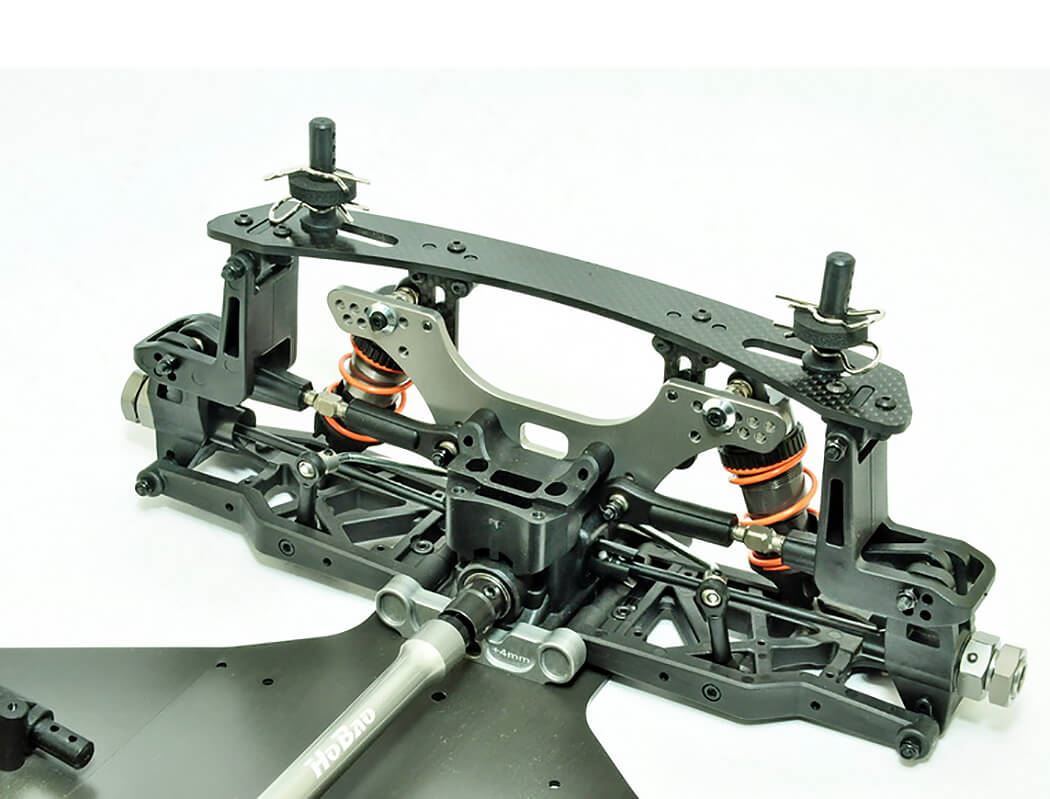

• Suspension: Front and Rear Sway Bars, Front PBS, Reinforced Composite Upper Arm and Lower Arm
• Caster: Adjustable
• Camber: Adjustable

SPECIFICATIONS

Length: 560mm
Width: 302mm
Height: 160mm
Wheelbase: 413mm
Front Track: 302mm
Rear Track: 296mm
Weight: 2540g

REQUIRED TO COMPLETE

• 2-Channel Radio/ Transmitter Set
• ESC & Motor
• Pinion Gear for Motor
• Tires,Wheels, and Tire Glue
• Body and RC Body Paint
• High-Torque Steering Servo
• LiPo Batteries
• Battery Charger
• Batteries for Transmitter
