Hobao Hyper 10Sc 2.0 Electric Truck Rtr With Grey Body

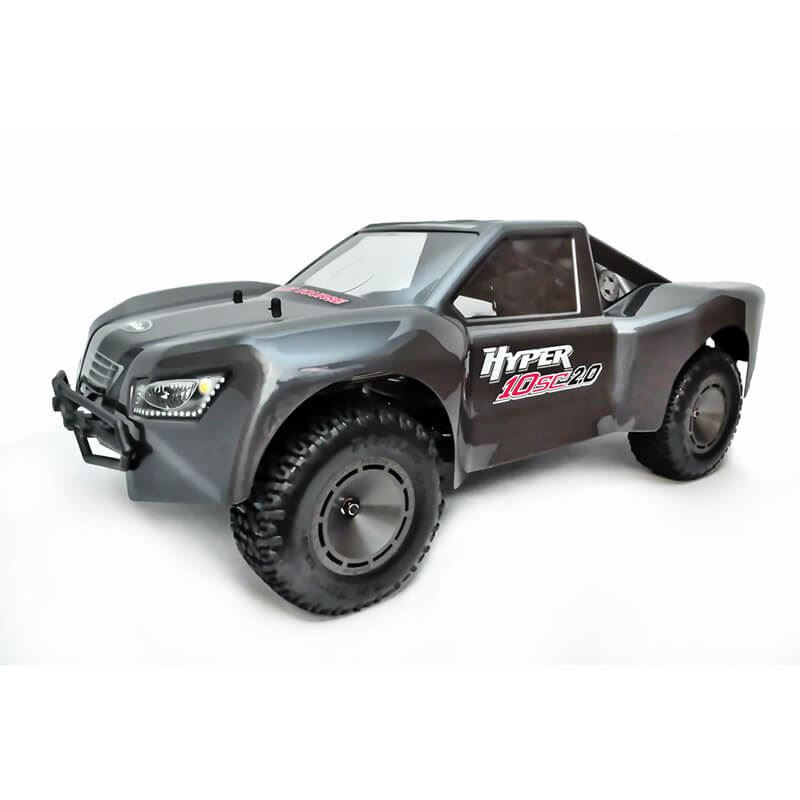

HOBAO HYPER 10SC 2.0 ELECTRIC TRUCK RTR WITH GREY BODY

Features

• All Metal Parts CNC Machined.
• Radio:
  – 3-channel 2.4GHz FHSS with dual rate steering and throttle.
  – Charge jack on transmitter for optional NiCd batteries.
• Servo:
  – High output ball bearing.
  – Metal gear.
  – Digital.
  – 18kg-cm torque.
• Motor:
  – 3900Kv brushless.
  – 4 pole.
  – Outer Diameter Ø36mm.
  – Shaft Ø3mm.
• ESC:
  – HobbyWing 60A waterproof ESC with single Deans plug battery connectors.
  – Cooling fan.
  – Program card .

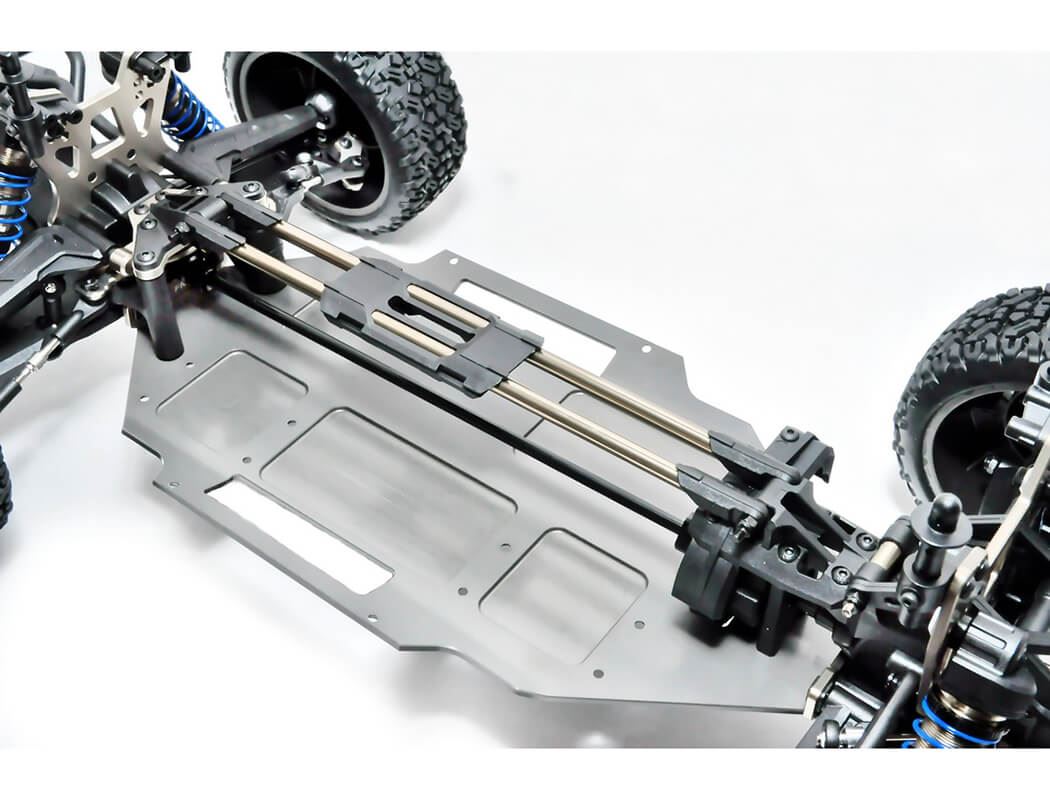

• Chassis: Lightweight, Hard anodised CNC aluminium, 3mm thick.
• Center Top Brace
  – Wire pass through.
  – Quick Release.
• Drive:
  – Central: Single Ø4mm Hardened steel center driveshaft.
  – Optional  Aluminum center driveshaft HOP1-0083.
  – Front wheel: CVA axles, Ø3.2mm Hardened steel.
  – Rear wheel: Dogbone axles, Ø3.4mm Hardened steel.
  – Optional rear wheel CVA axles HOP1-0082.
• Differentials:
  – Center differential is directly connected to rear differential.
  – Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
  – Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).
  – Center Spur Gear: 40T (MOD 1).
  – Motor Gear:13T (MOD 1).
  – Front differential filled with 20K silicone oil.
  – Center differential filled with 9K silicone oil.
  – Rear differential filled with 5K silicone oil.
• Shocks:
  – Filled with front 700 silicone oil and rear 600 silicone oil.
  – Aluminium 12mm Big Body, 3.5mm Shaft, Alum Adjustable Ring, Shock Cap Protector.
• Spring:
  – Front: 0.86kg/cm, L=50mm, Blue.
  – Rear: 064kg/cm, L=65mm, Blue.
  – Optional Front Spring HOP1-0073: 1kg/cm, L=50mm, Grey.
  – Optional Rear Spring HOP1-0074: 0.73kg/cm, L=65mm, Grey.
  – Shock Tower: 3mm CNC aluminium.
  – Optional carbon fiber shock tower, Front tower HOP1-0070 & Rear tower HOP1-0071.
• Suspension:
  – Front PBS.
  – New design steering block with enlarged pivot ball and alum steering arms.
  – Optional alum steering block set HOP1-0077; Alum rear hub HOP1-0079.
  – New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the Hyper 10SC).
  – Optional carbon fiber arm insertHOP1-0068 and HOP1-0069.
  – Front & rear anti-roll bars.
  – New Alum front and rear arm holder.
  – Front and rear CNC alum arm holder with pill inserts H11367, adjustable toe angles and anti-squat angles.

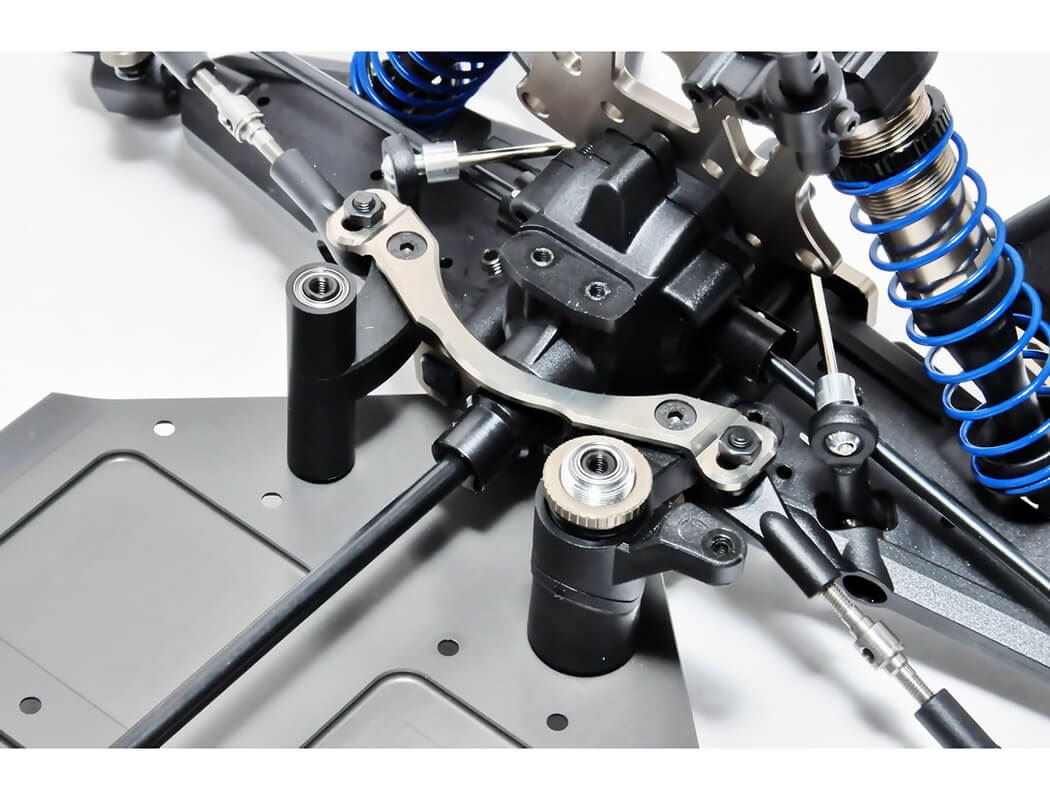

• Steering:
  – New Steering Crank set with Strengthen CNC Aluminium steering rack and hard spring.
  – Ball bearing equipped with servo saver.
• Strengthen center body shell frame.
• Motor Mount:
  – CNC aluminium laydown motor mount.
  – Fitting for motors with size below 38mm.
  – Spur gear cover.
• Tyres:
  – 2.2″/3.0″ Short Course Tyres.
• Wheel Hex Hub:
  – Front 12mm wheel hex hubs , Plastic.
  – Rear 12mm wheel hex hubs, +1mm , Plastic.
  – Optional Front wheel hex hubs HOP1-0075; Rear wheel hex hubs HOP1-0076.
• Wheels:
  – 2.2″/3.0, 12mm H40127.
  – Optional 5-Spoke Wheels. H11034.
• Ball Bearings:
  – Full set included.
• Caster:
  – Adjustable.
• Camber:
  – Adjustable.

Specifications

Length: 550mm
Width: 306mm
Height: 195mm
Wheelbase: 325mm
Front Track: 235mm
Rear Track: 240mm
Weight: 2870g

Required To Complete

• LiPo batteries with single Deans Connector.
• Battery Charger.
• 4 x AA Batteries for Transmitter.
