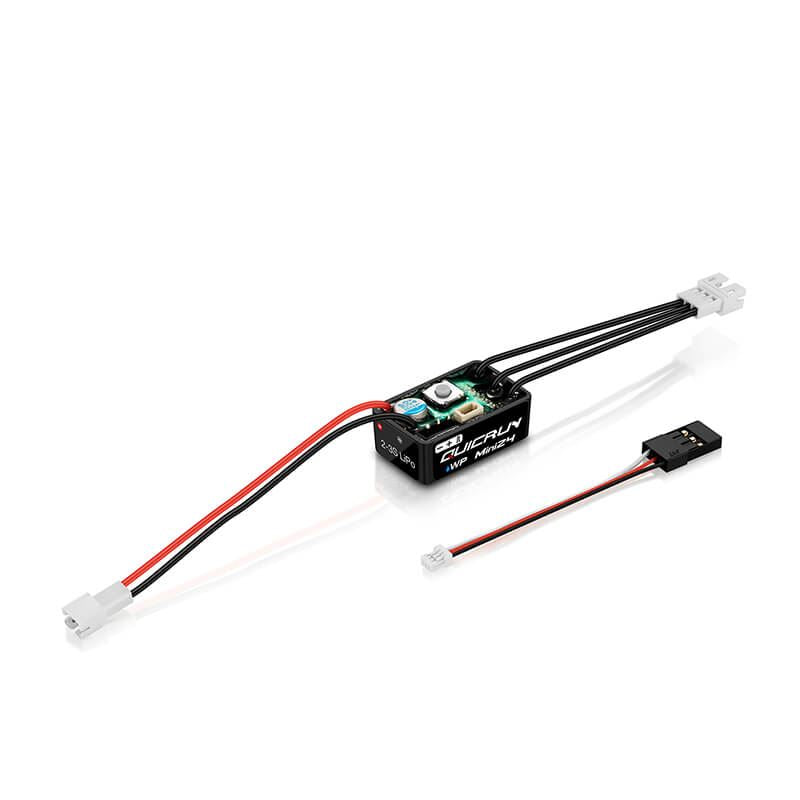

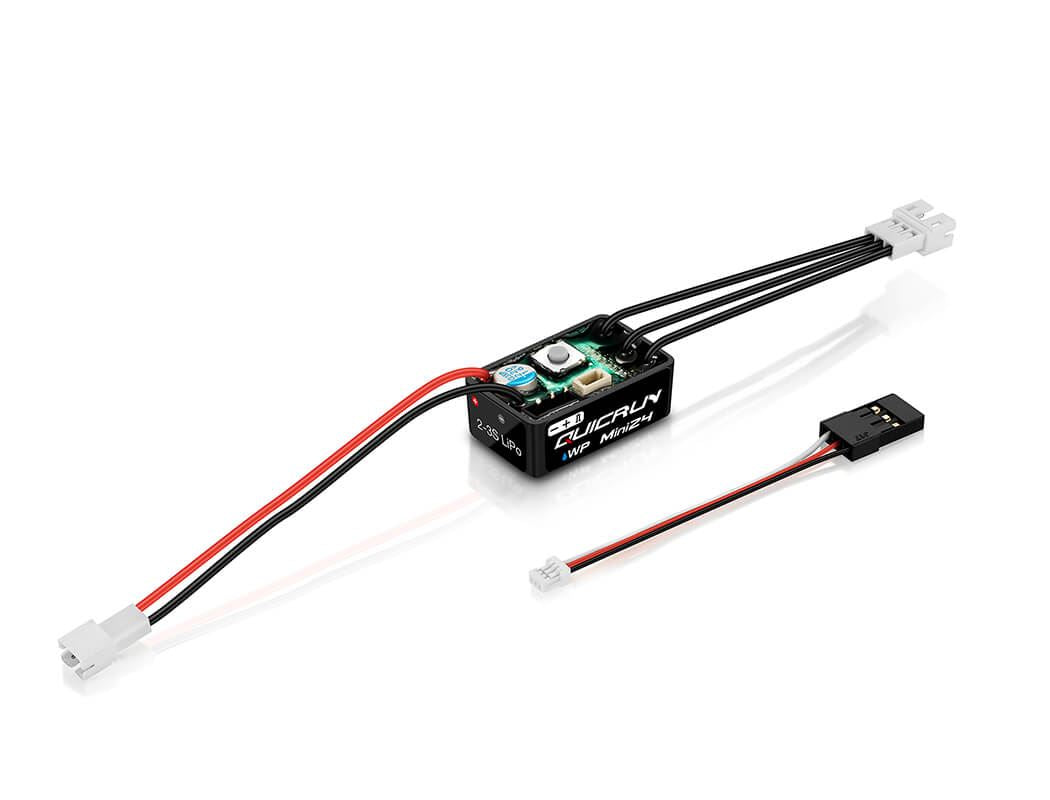

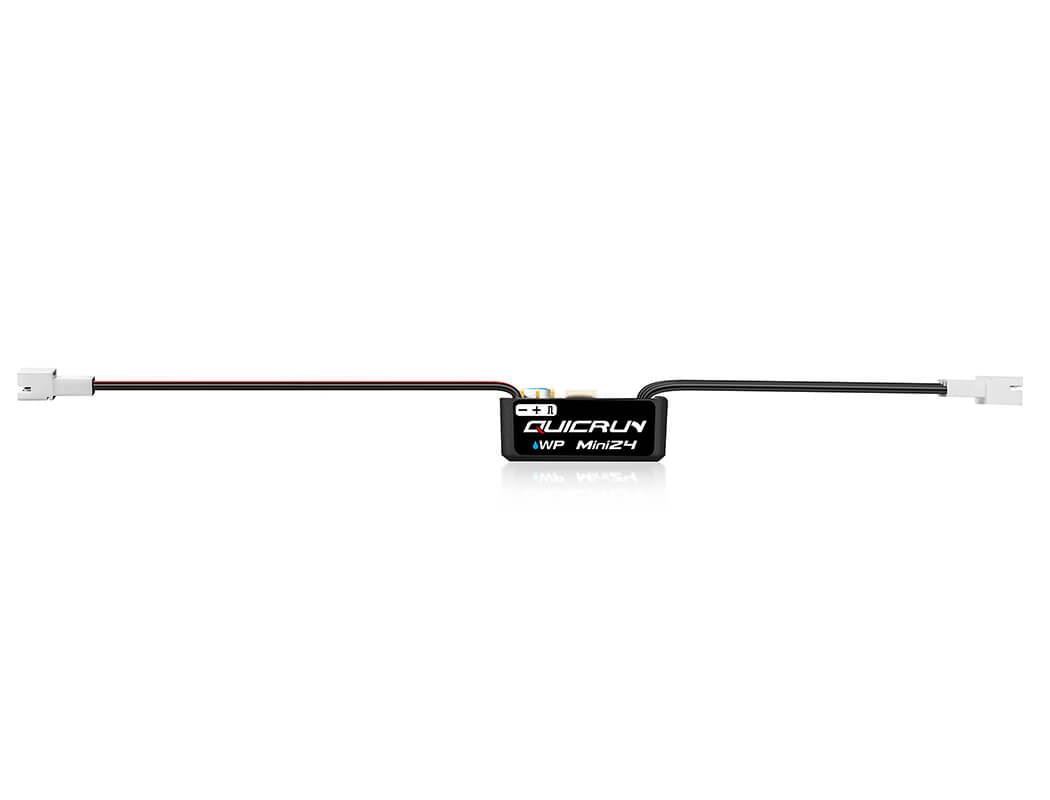

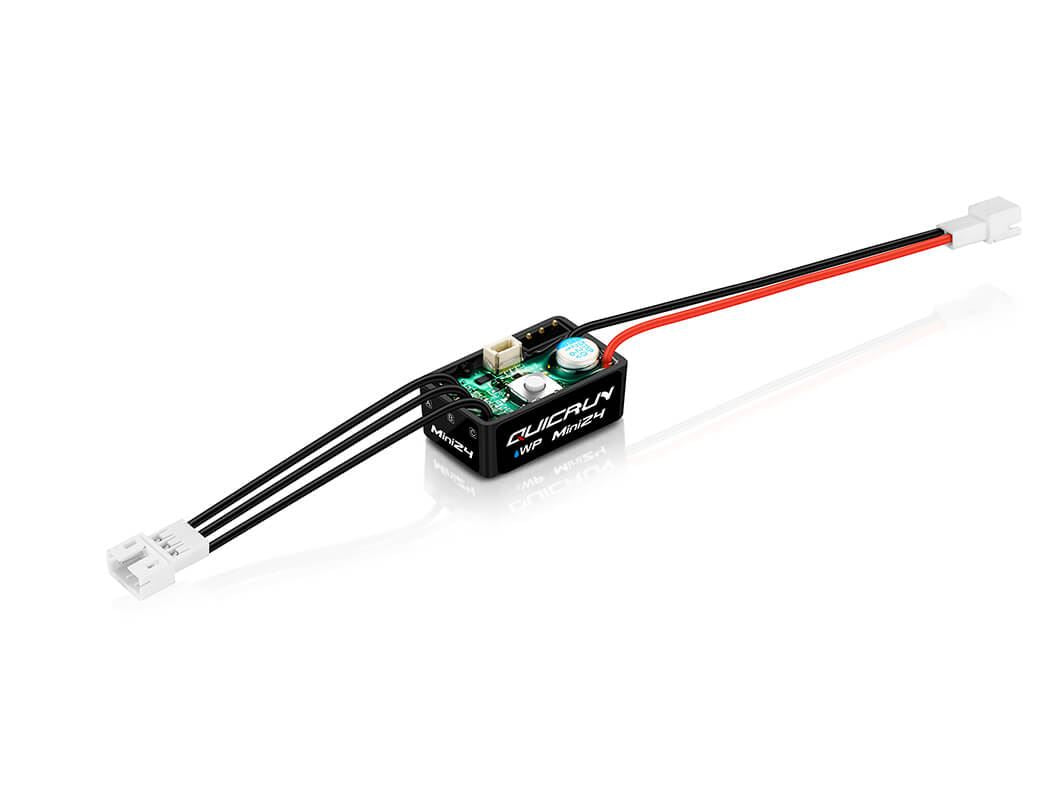

Hobbywing Quicrun Wp Mini24 Brushless Sensorless Esc (25A)
HOBBYWING QUICRUN WP MINI24 BRUSHLESS SENSORLESS ESC (25A)
Specifications
Scale: 1/24th, 1/18th,1/16th
Brushed/Brushless: Brushless,Brushed
Sensored/Sensorless: Sensorless
Waterproof: Waterproof
Cont./Peak Current: 25A/60A
Input Voltage: 2-3S Lipo
BEC BEC Output: 6V/7.4V adjustable, continuous current 2A (Switch mode)
Input Wires: Black-22AWG-110MMmm*1 Red-22AWG-110MMmm*1
Input Connectors: Black-22AWG-60MMmm*3
Input Connectors: PH2.0-2PIN Female Connector
Output Connectors: PH2.0-3PIN Female Connector
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box/LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent programming cable
Data Recording Extreme value: Not Supported
Real-time Data: Not Supported
Historical data (Graph): Not Supported
Firmware Upgrade: Not Supported
Size: 28*17.8*13mm
Weight: 13.5g(including wires&connectors)
Suitable Motors: Sensorless brushless motor, and brushed motor.
Vehicles: 1/24thVehicles,1/18th?1/16thCrawlers
Applicable Motors: QUICRUN Outer 1621, mainstream 1212, 1806 sensorless outrunner motors; 050, 130, 180 including other brushed motors.
