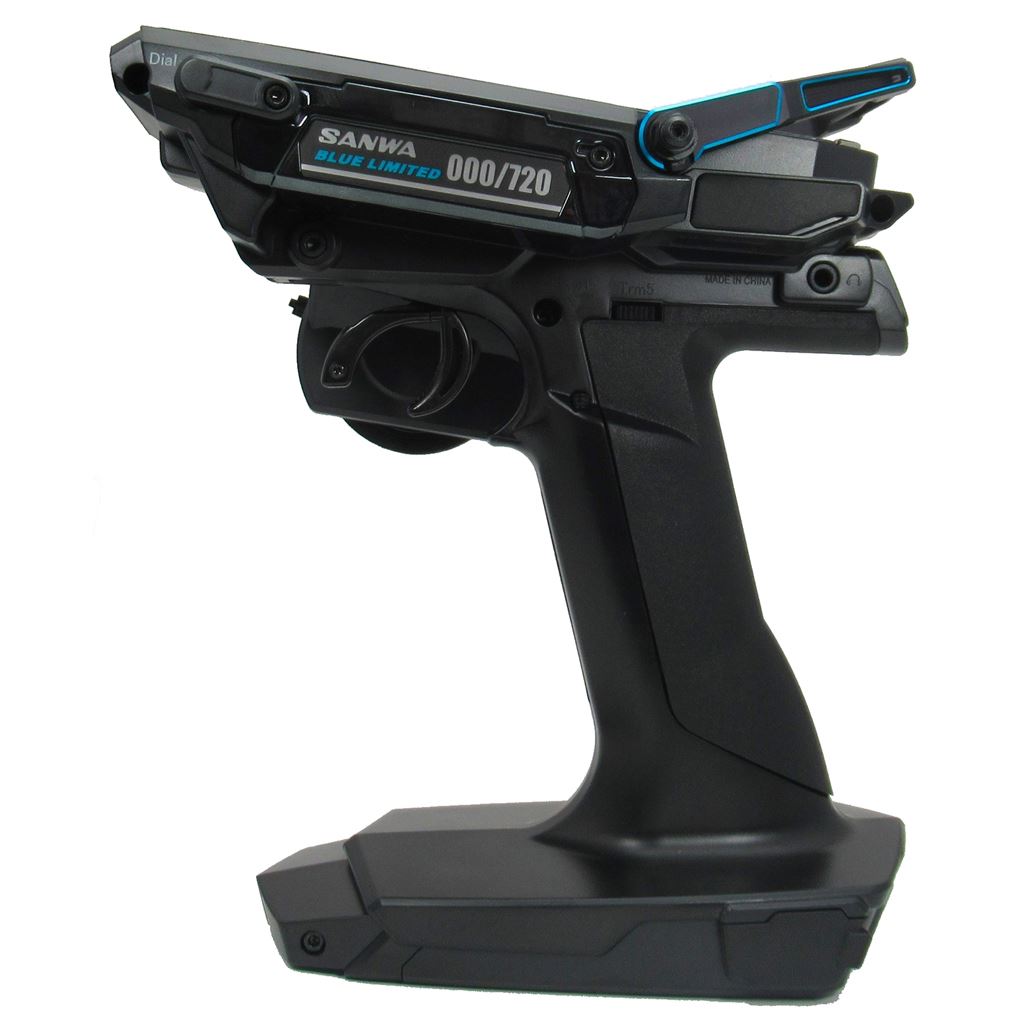

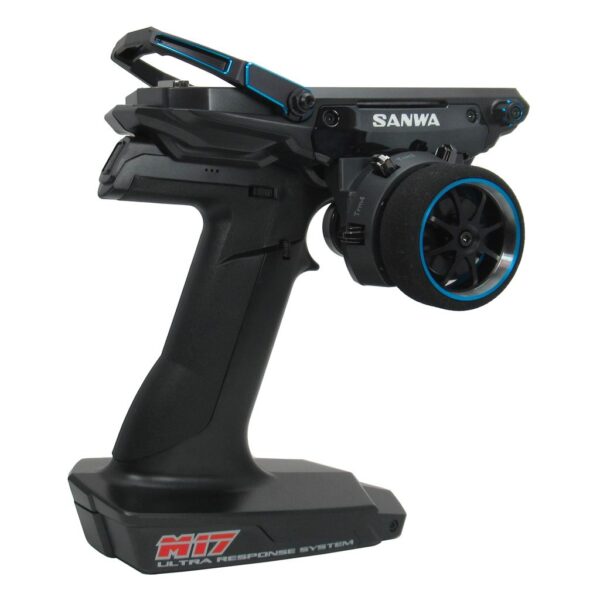

SANWA M17 Radio Set Limited Edition – Blue
Limited Edition Features
1 – Coloured Aluminium Steering Wheel, Dial and Handle.
2 – Black Chrome Plating Front and Rear Panel.
3 – Oil Slick Screw installed on Aluminium Handle.

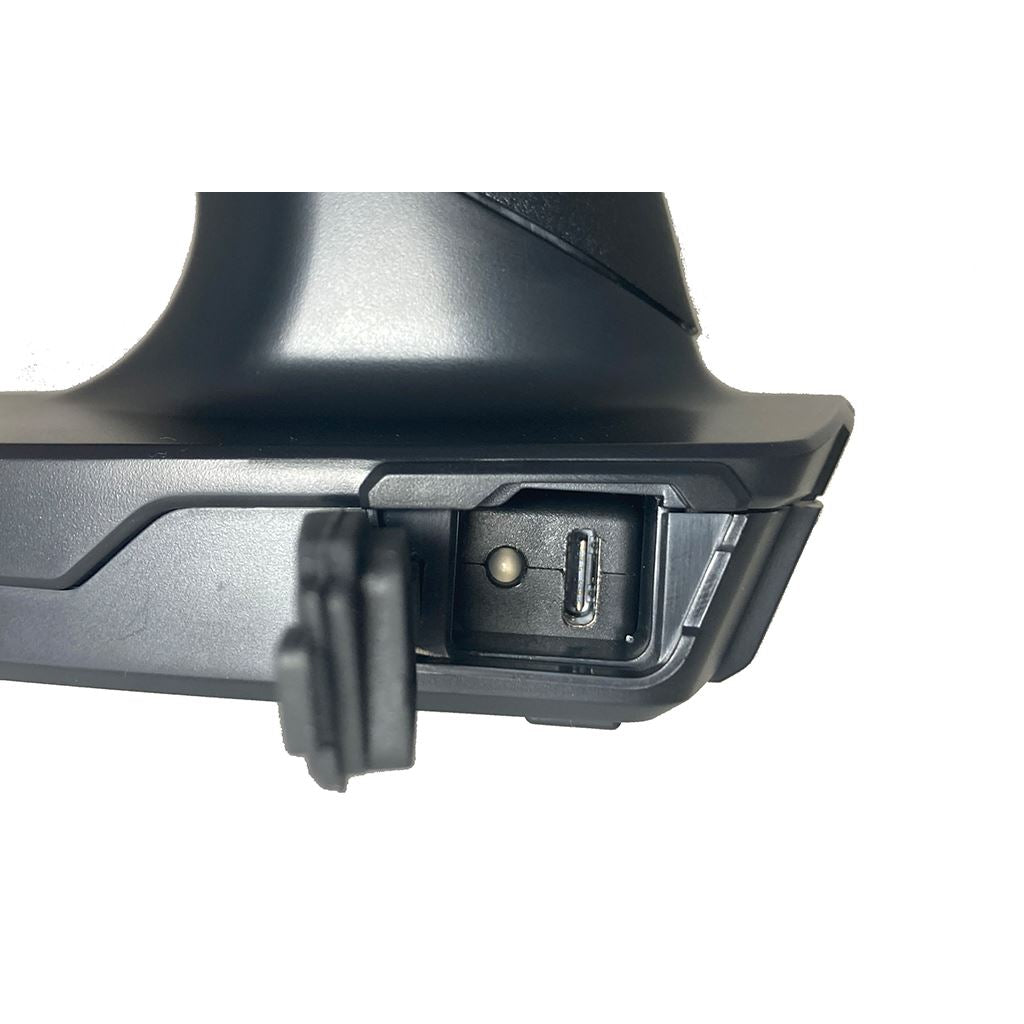

4 – USB Type-C installed for easy charging.
5 – Each Transmitter is numbered on the back panel (Number 1-720 of each transmitter)
Main Features
– Ultra Response Mode (SUR) New Transmitter system “FH5” makes new record of the World Fastest Response.
– Colour Display and Touch Panel are easy to control.
– Light weight (about 510g) and high rigidity than M12S
– Steering and Throttle Position Optimization and Steering Swing Adjust Function
– Detachable Throttle Unit is available to change spring by drivers (World First)
Product Description
– Installed “Fine Colour Display (480×320)
– Touch Pad can be smooth & quick to set
– Installed Detachable Throttle Unit is available to change spring by drivers
– Steering and Throttle position can be optimized without off set bracket. Improved Steering Unit can be increased case strength during operation
– Improved Steering Unit is available to be steering swing adjustment
– Battery recharge port is installed and battery can be check when recharging
– Compatible with Micro SDHC Card is available to manage firmware update, model data, and Telemetry Log
– Installed Multi-Setting Function is available to set PGS servos to connect with transmitter
– Compatible with SSL CODE10 and CODE5 function is available to set PGS servos and SUPER VORTEX Gen2 PRO without any connection
– Installed tilt carrying handle can be holding and easy to put in the box
– Steering Unit can change position for lefty
– Detachable Strap Hook is placed on ideal position for drivers
– Succeeded Full Adjustable Trigger can be fittable for individual
– Optional Large Steering Wheel in package is available to be fine operation
– Available to customize by grip pad, brake trigger, angle spacer, and variable spring in package
– RX-491 is compacted receiver and waterproof and is plugged in BIND system and short antenna
– Installed Screen Reader Function is available to sound Lap Time and Telemetry Data and installed headphone jack can be used
– Quick and easy to set as model data and other setting by Quick Set Up Wizard
– Includes LiPo battery, 3.7v 1S 2500mAh which can be charged through micro USB.
System Features
– Dull-dot Colour LCD(480×320) – Switchable driving position(Left/Right) – Touch Pad – Built-in Antenna – ST,TH Adjuster – Detachable Fully Adjustable Throttle Unit – Feeling – Safety Link- Racing Mode – Setup Wizard – Dual Rate – End Pint Adjust – Anti-Lock Brake – Servo Speed – Offset – Trim/Sub Trim – Servo Reverse – Curve – Fail Safe – Timer – Lap – CODE AUX – Model Memory – Model Name – Model (Select/Copy/Clear/Sort) – Direct Model Select – RF Mode (FH5,FH4,FH3) – Response Mode (SUR/SSR/SHR/NOR) – Bind – Log(REC/RPM/VOLT/TLM1/TLM2/ST Point/TH Point/RX Mode/Reading Function) – Servo Monitor – Key Assign – Vibrator – AUX Type – Trim Type – TH Type – Calibration – Custom Menu – Mechanical Rudder Angle Adjustment – Large Steering Wheel included – Large/Small Grip Pad included – Compatible RX: Telemetry-compatible(RX-491, RX-482, RX-472, RX-47T, RX-462, RX-461) , Non-Telemetry-Compatible(RX-481,RX-481WP, RX-471 Dual ID, RX-471W, RX-451R, RX-451, RX-381,RX-480)
Accessory
– Grip Pad (Large/Small) – Large Steering Wheel – Strap Hook – Steering Slant Parts (Right Hand/Left Hand) – Trigger Angle Spacer – Brake Trigger(+1/+2) – Spring for ST and TH (Hard, Medium, Soft, Super Soft) – Dial Cover for Lefty
Receiver Features
– Compact receiver
– Waterproof
– Plug in Bind
– Short Coaxial Antenna
– 2.4 GHz FHSS5 Spread Spectrum System 4ch
– Compatible with Telemetry
*Cannot connect RPM sensor and Temperature sensor To measure RPM and Temperature is only combine with SUPER VORTEX series
– Compatible with SSL (SUPER VORTEX Series, etc…)
– Ultra Response Mode (SUR)
– Extreme Response Mode (SXR)
– The smallest and lightest receiver in the class
Recommended optional battery
IP584674-1S2P – TX Battery for Sanwa M17=6000mAh-3.7V
or
AM700995 – AM Lipo 6000mAh – 3.7V for Sanwa M17 v2
Latest Firmware(Ver 1.01.10) 04/08/2020
