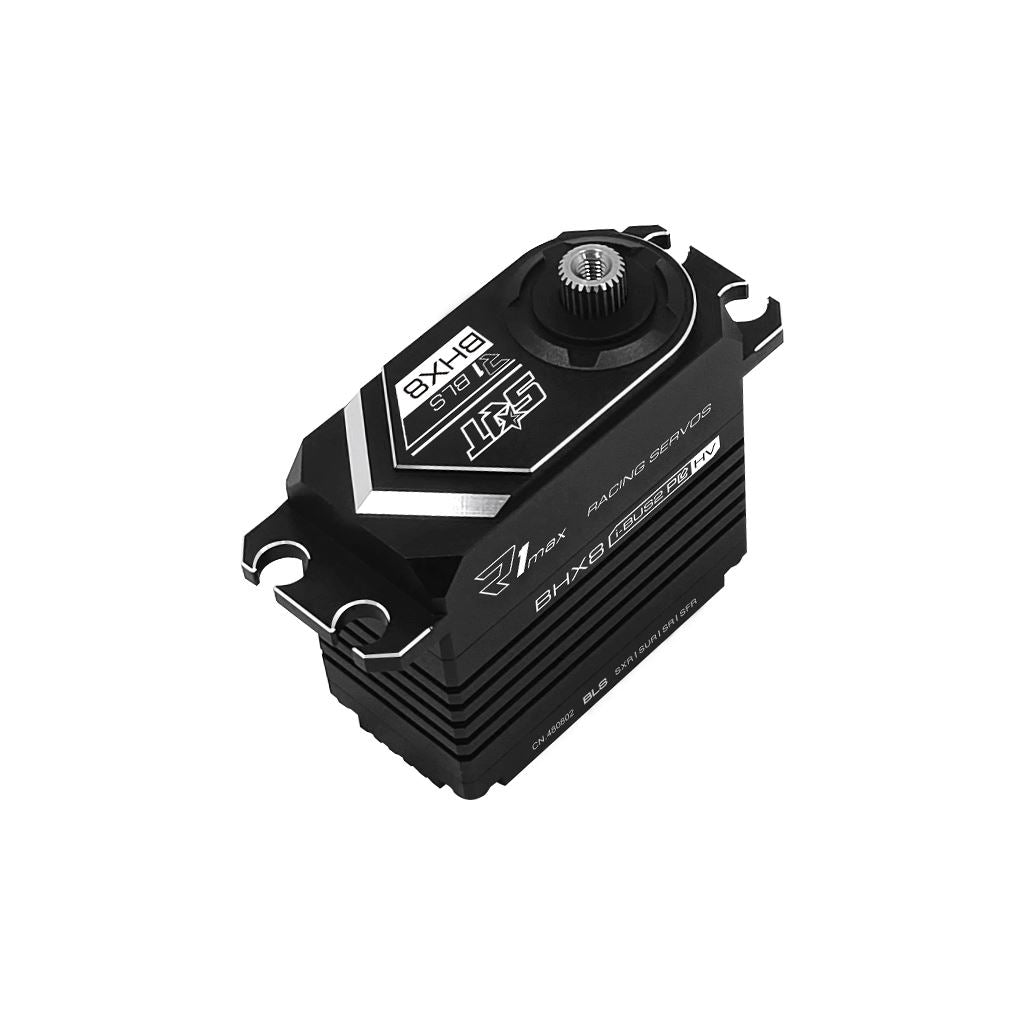

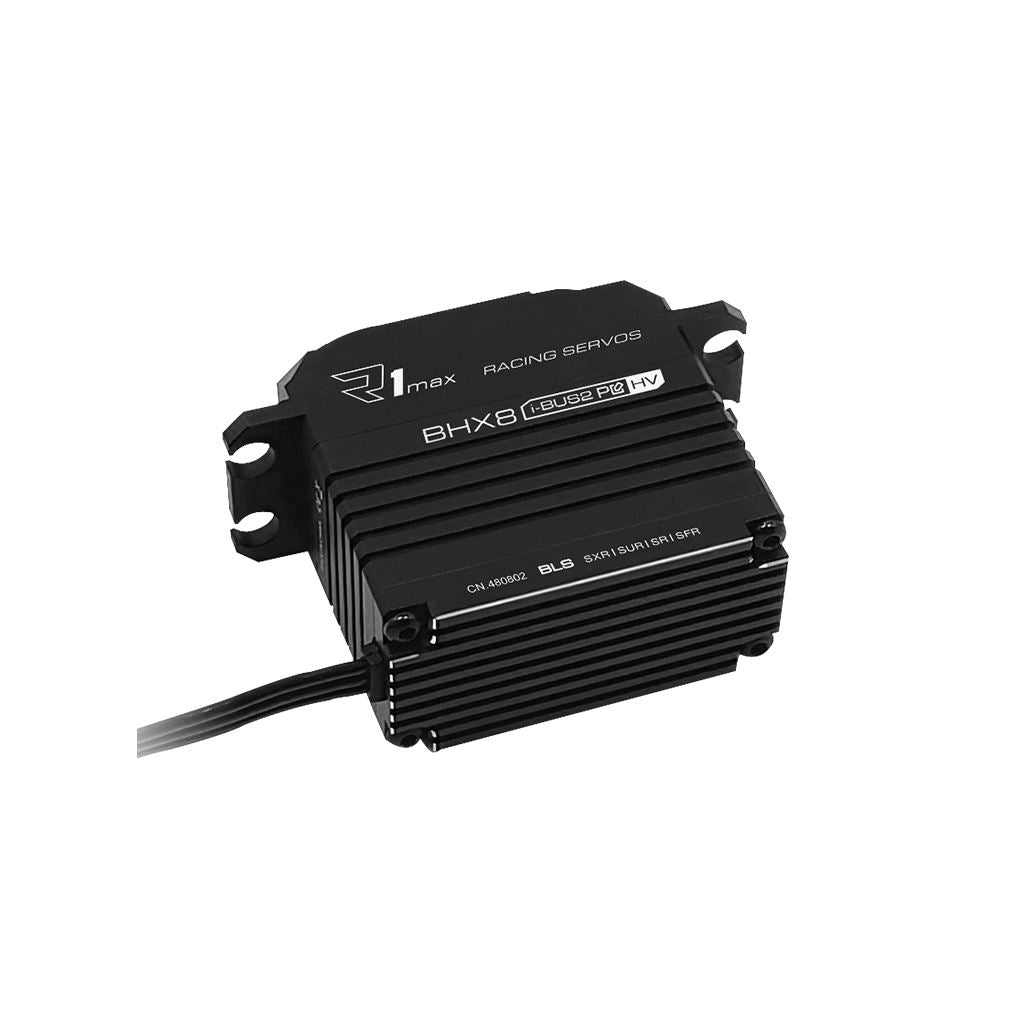

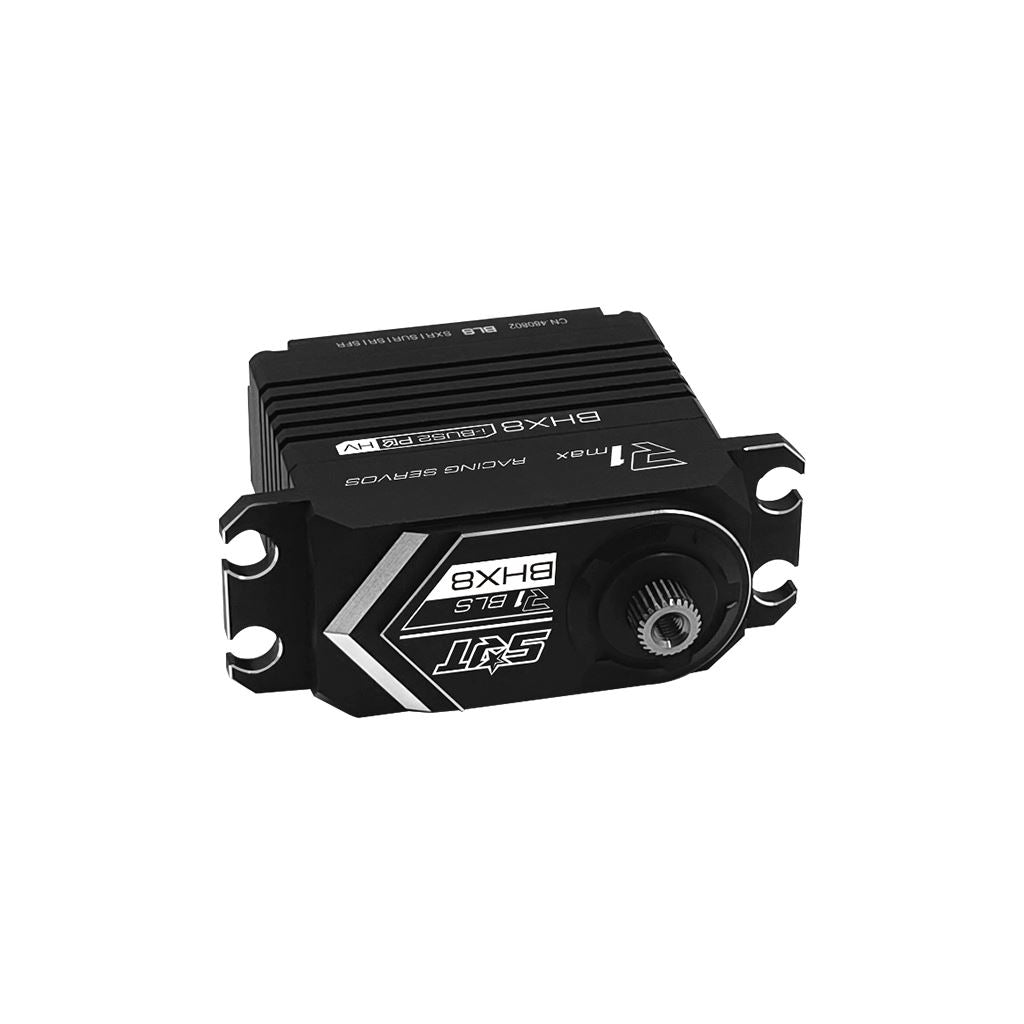

Srt Bhx8 Hv Brushless Servo
– Superior Holding Torque
– Incredible efficiency and low power consumption
– Standard dimension make it perfect for vehicles that can benefit from a high quality servo
– CNC Machined aluminum case for exceptional cooling
– Programmable High torque Brushless servo
– Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
– 25T output shaft
– 2 μsec Dead Band
– 1-Year Limited Warranty
Application :
1/10 Crawler
1/8 Nitro Buggy
1/8 Electric Buggy
1/8 Crawler
1/5 Nitro Touring
1/5 Nitro Buggy
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.11 sec/60 degrees at no load
operating speed (7.4v): 0.078 sec/60 degrees at no load
operating speed (8.4v): 0.07 sec/60 degrees at no load
stall torque (6.0v): 50.0kg.cm (694.4 oz/in)
stall torque (7.4v): 55.0kg.cm (763.8 oz/in)
stall torque (8.4v): 60.0kg.cm (833.2 oz/in)
potentiometer drive: direct drive

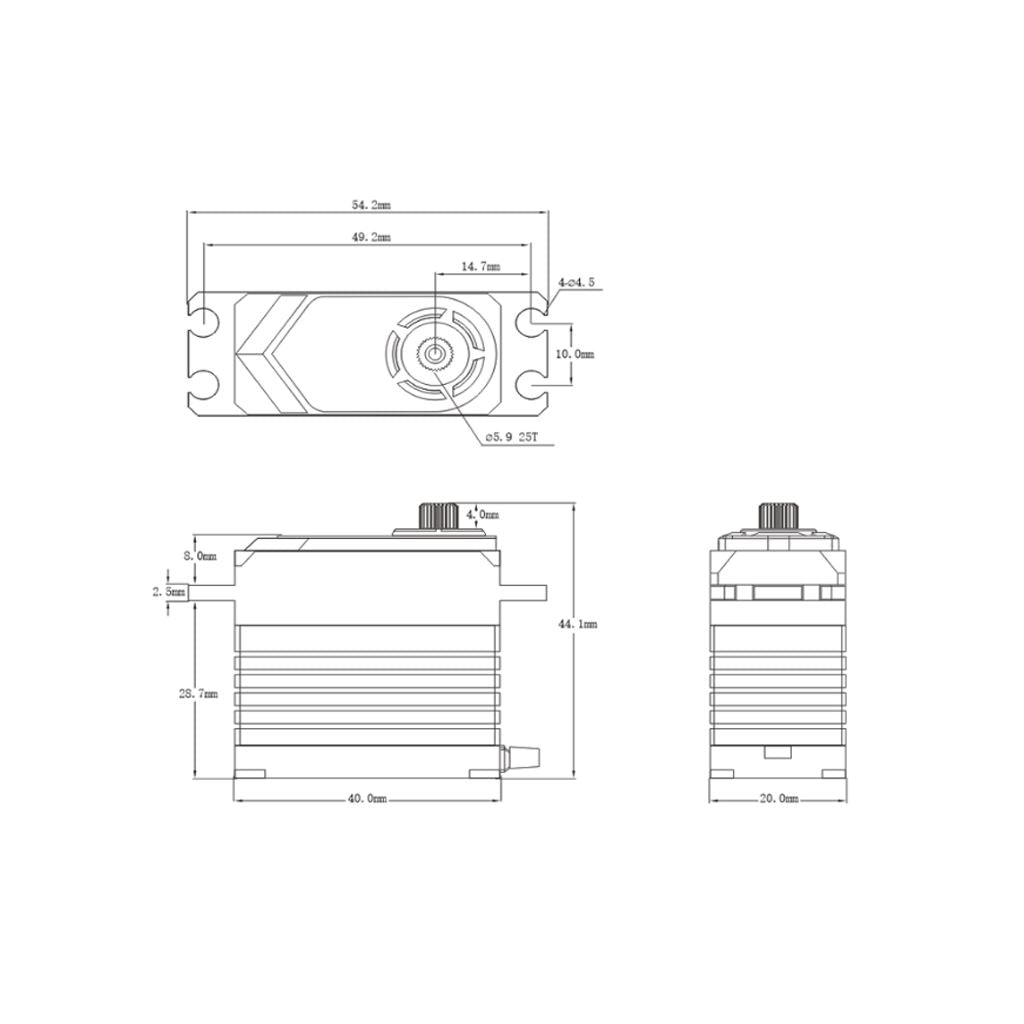

dimensions: 40.0 x 20.0 x 39.2 mm /1.57 x 0.79 x 1.54 in
weight: 82.0g (2.89 oz)
connector wire length: jr 300 mm
