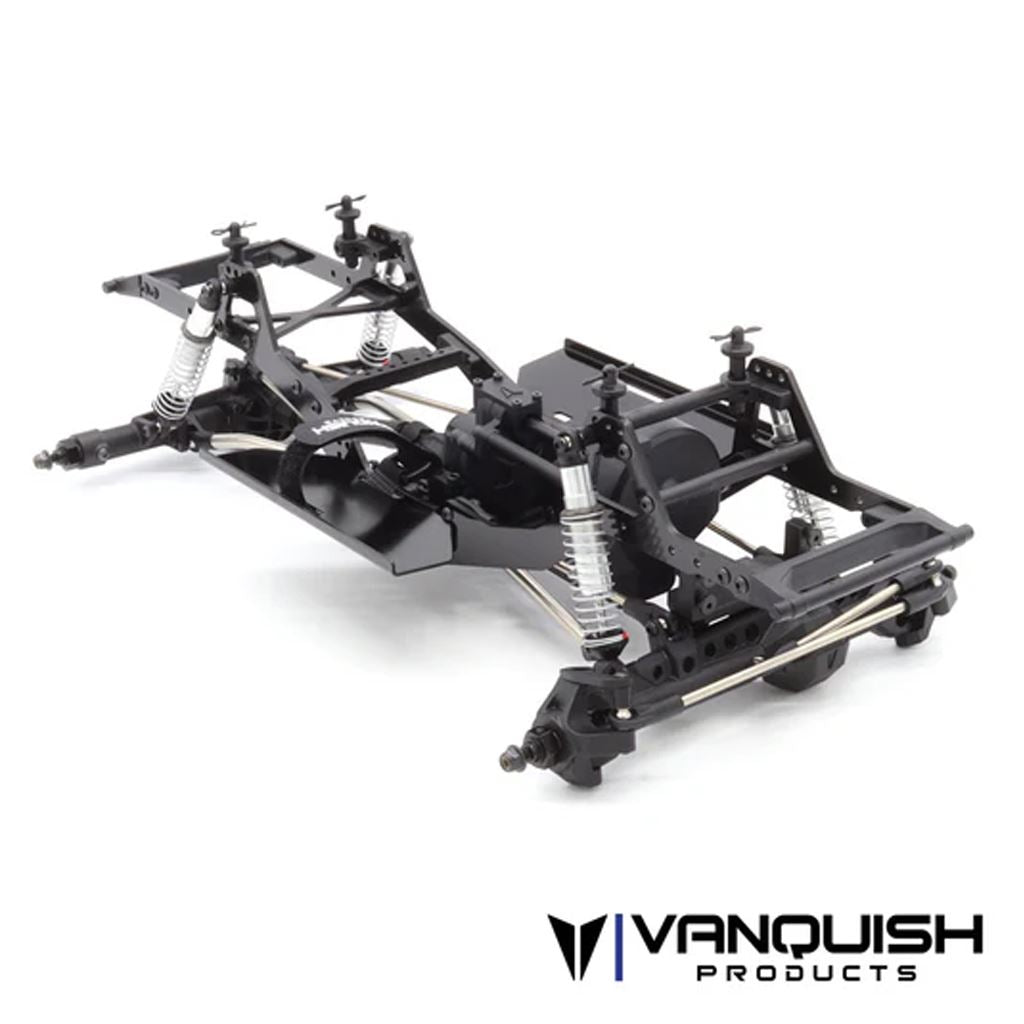

Vanquish Vrd Builders Kit – Straight Axle
Wheels, Tires, Body and Bumpers are not included. See information below.
F10 STRAIGHT AXLES
The F10 Straight Axles are widely praised for their exceptional durability, precise engineering, and smooth performance, making them a top choice among enthusiasts.
Drivetrain
The VRD Builders Kit includes the Vanquish Products VFD transmission and F10 straight axles. The F10 axles feature a high clearance design, minimizing pumpkin size and maximizing strength around the C-hub and knuckle. The ISD10 driveshafts connect the VFD to the F10 axles, featuring machined CV joints and molded splined shafts for smooth, efficient performance.
VFD TRANSMISSION
The proven VFD transmission is equipped with 6.5% overdrive. Providing a low and forward motor position with a protective skid plate along the front of the skid plate.
OVERDRIVE TRANSFER CASE
Full ball bearing and metal gears provide strength and longevity for worry free performance.
UNIVERSAL JOINT AXLE SHAFTS
VDI Front axle shafts provide 49° of steering angle.
LOW CENTER OF GRAVITY
Low mounted electronics and battery paired with a forward bias motor position enables you to optimize your build for top performance.
VRD Chassis
Equipped with molded chassis parts offers a customizable base to adjust to challenging terrain. Various shock and body mounting locations with simple front/rear bumpers ensure easy body installation and alignment.
VRD CHASSIS DETAILS
Function forward design utilizing Aluminum Flat Rail Chassis and an angled skid plate for a performance focused layout.

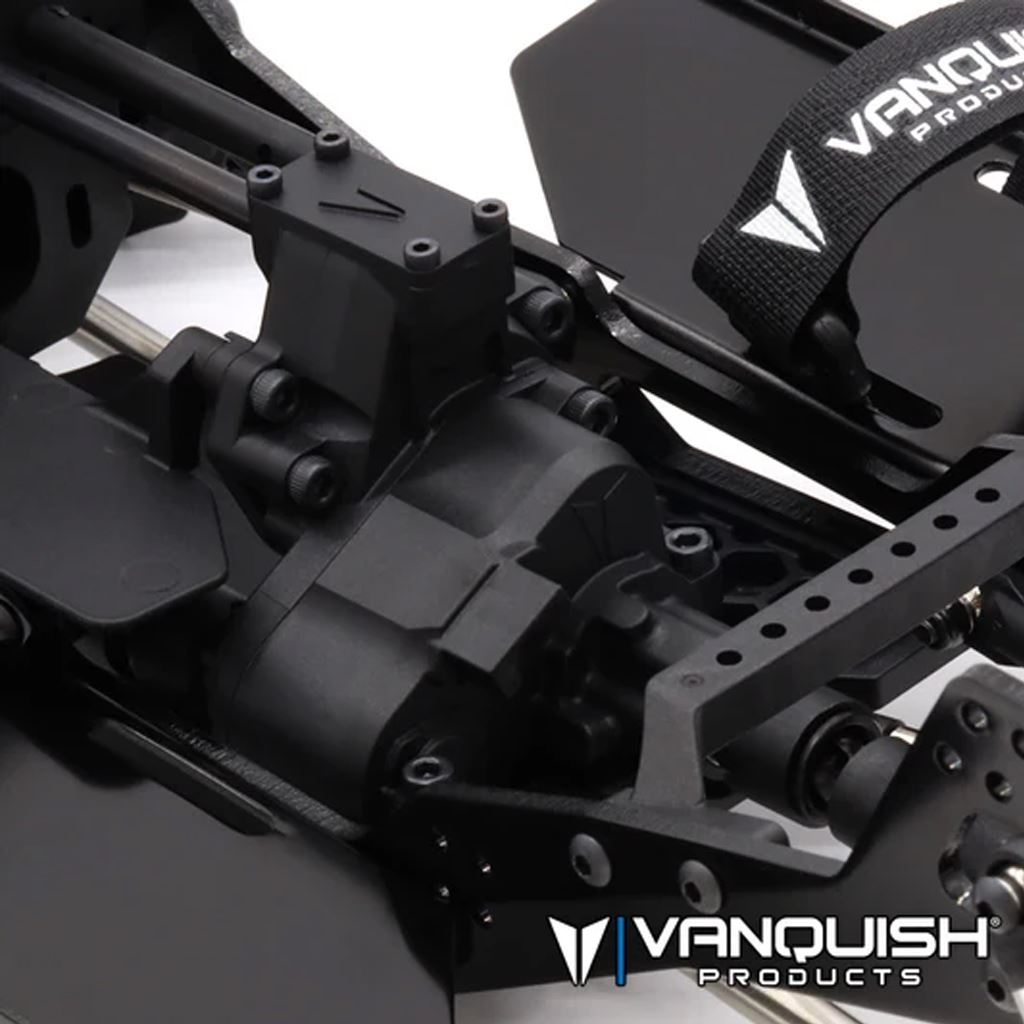

VFD Transmission
The VFD is designed for optimal performance, scale appearance, strength, and versatile accessories. It positions the motor forward and low for ideal weight distribution. The VFD Spec transmission offers a 6.5% overdrive for improved turning and climbing without stressing electronics. The T-case features replaceable bearing plates for adjustable positioning and optional gear ratios. Compatible with 540 brushed and brushless motors*.
Strength and Tunability
The VFD transmission has wide metal gears inside for strength in the areas that count. The option to build the VFD transmission with a variety of option parts allows you to tune the performance to your needs.
Suspension
The VRD utilizes Incision 90mm S8E shocks with 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, and polished steel shock shafts. The front 4-link with suspension with servo-on-axle prioritizes steering effectiveness. Stainless steel links ensure low weight and durability.
Performance Focused
Created to be an all-in-one solution for builders wanting to create their own competition capable vehicle in their own unique style.
Specification
- 1/10th Scale
- 3.75:1 Axle Gear Ratio
- 13T Pinion
- 56T Spur Gear
- Wheelbase: 318mm (12.5″)
- Overall Front Ratio: 47.6:1
- Overall Rear Ratio: 50.8:1
- Front axle width pin to pin: 182mm (7.17″)
- Rear axle width pin to pin: 182mm (7.17″)
VRD BUILDERS KIT – STRAIGHT AXLE

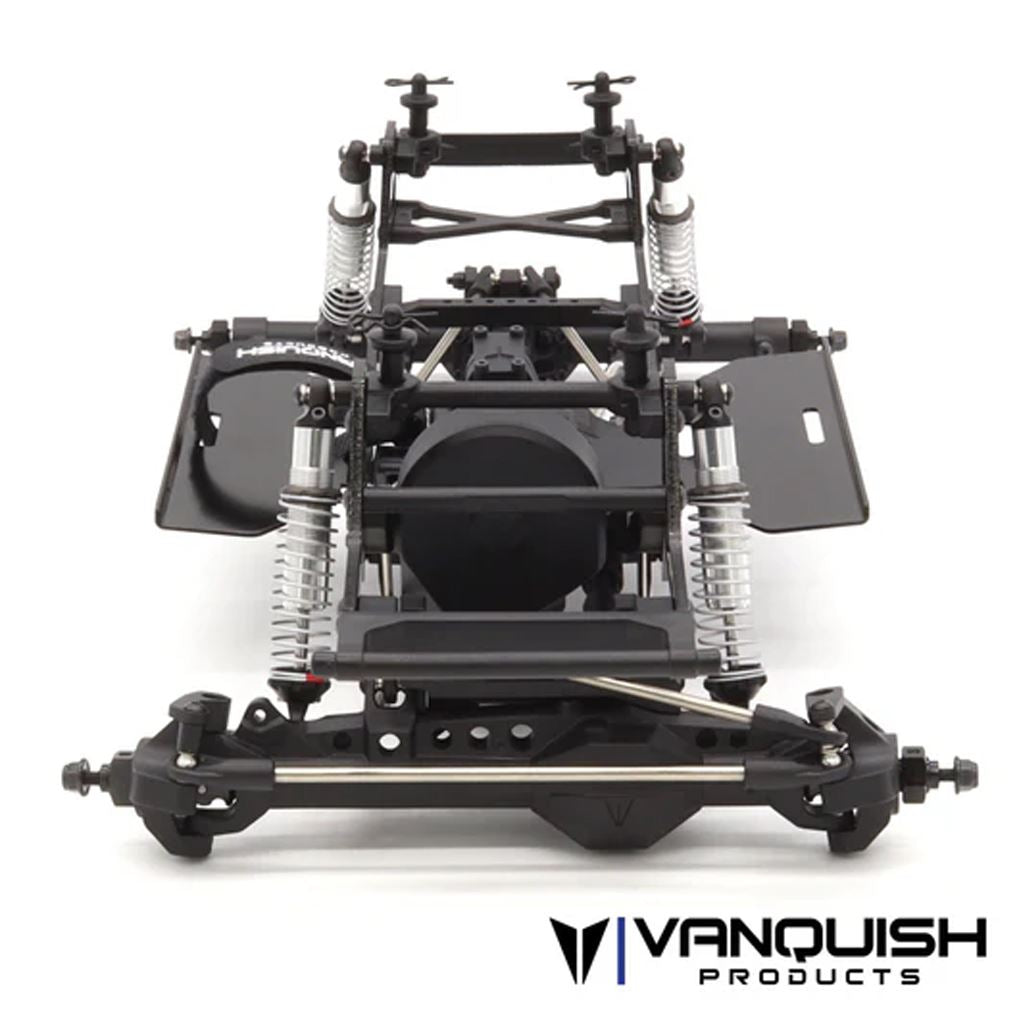

The Vanquish Products VRD Builders Kit is our entry level competition platform brought to life by some of the industry’s most experienced designers in the RC rock crawling segment. Utilizing the VFD Transmission and F10 straight axles the VRD Builders Kit is a highly competitive, predictable and versatile platform. The heart of the VRD Builders Kit is a 3mm thick pair of aluminum frame rails mated to the 6 degree flat bottom skid plate. The molded chassis components and skid plate place the VFD transmission as low as possible into the VRD chassis. The front F10 straight axle is equipped with a servo on axle and 4-link suspension.
VFD Transmission
- 3mm Aluminum Frame Rails – 6 degree flat skid plate
- 6.5% Overdrive
- F10 Straight axles
- Metal VFD Transmission Gears
- Sintered Metal 30T Ring Gear, Machined 8T Pinion gear in axles
- Chromoly Universal axle shafts
- Aluminum Shock Bodies
Required Items
- Tools
- Paint
- Body
- 1.9 Tires (Recommended)
- 1.9 Wheels (Recommended)
- Transmitter / Receiver
- Steering servo (25 spline 20mm Servo Horn included)
- 540 Motor
- ESC
- Battery
- Charger
